LinearBarcodeShape PrintRatio

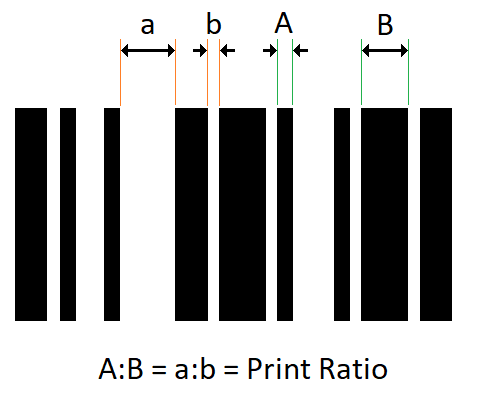

Gets or sets the print ratio of the linear barcode shape. The print ratio defined as the ratio between the widths of wide and narrow bars or spaces

public float PrintRatio {get;Set}



Return value

float Print Ratio



Example

Copy
scanDocument = scanDeviceManager.CreateScanDocument(GetselectedDeviceUniqueName(), DistanceUnit.Millimeters, false);

if (scanDocument != null)
{
    VectorImage vectorImage = scanDocument.CreateVectorImage("image1", DistanceUnit.Millimeters);

    vectorImage.SetMarkSpeed(1000);
    vectorImage.SetJumpSpeed(2000);
    vectorImage.SetJumpDelay(100);
    vectorImage.SetMarkDelay(100);

    //Set Laser Delays
    vectorImage.SetLaserOnDelay(10);
    vectorImage.SetLaserOffDelay(10);

    LinearBarcodeShape lnBarcode = new LinearBarcodeShape();
    lnBarcode.BarcodeType = BarcodeType.Codabar;
    lnBarcode.Angle = 0;
    lnBarcode.FlipHorizontally = false;
    lnBarcode.FlipVertically = false;
    lnBarcode.Height = 4;
    lnBarcode.Width = 6;
    lnBarcode.InvertImage = false;
    lnBarcode.Location = new Point3D(0, 0, 0);
    lnBarcode.MarkingOrder = MarkingOrder.HatchBeforeOutline;

    lnBarcode.PrintRatio = 3;

    lnBarcode.QuietZone = false;
    lnBarcode.Text = "1234567890";
    lnBarcode.HatchPattern = BarcodeHatchPattern.CreateLineHatchPattern(0.01f, true, false);

    vectorImage.AddBarcode(lnBarcode);
    scanDocument.Scripts.Add(new ScanningScriptChunk("defaultScript", "StartLogging(\"192.168.137.1\", 5032)\r\n ScanAll()"));
    try
    {
        scanDocument.StartScanning();
    }
    catch
    {

    }
}
