VectorImage AddArc

Adds an Arc to the VectorImage

Overloads

public void AddArc(float centerX, float centerY, float centerZ, float radius, float startAngle, float sweepAngle)

public void AddArc(ArcShape arcShape)

public void AddArc(float centerX, float centerY, float centerZ, float radius, float startAngle, float numberOfTurns, bool isClockwise)

Return value

void

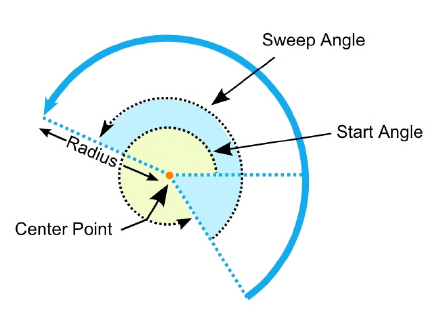

Parameters

float	centerX	The x coordinate of the center
float	centerY	The y coordinate of the center
float	centerZ	The z coordinate of the center
float	radius	The radius of the arc
float	startAngle	The StartAngle (measured in radians) of the arc
float	sweepAngle	The Sweep angle (measured in radians) of the arc
float	numberOfTurns	Number of turns the arch should repeat
ArcShape	arcShape	Define an Arc Shape object
bool	isClockwise	Set whether the arc should be CW or CCW

Example

Copy

scanDocument = scanDeviceManager.CreateScanDocument(GetselectedDeviceUniqueName(), DistanceUnit.Millimeters, false);

if (scanDocument != null)
{
    VectorImage vectorImage = scanDocument.CreateVectorImage("image1", DistanceUnit.Millimeters);

    vectorImage.SetMarkSpeed(1000);
    vectorImage.SetJumpSpeed(2000);
    vectorImage.SetJumpDelay(100);
    vectorImage.SetMarkDelay(100);

    //Set Laser Delays
    vectorImage.SetLaserOnDelay(10);
    vectorImage.SetLaserOffDelay(10);

    vectorImage.AddArc(0, 0, 0, 10, .1f, 1.2f);

    scanDocument.Scripts.Add(new ScanningScriptChunk("defaultScript", "ScanAll()"));

    try
    {
        scanDocument.StartScanning();
    }
    catch
    {

    }

}
