Barcodes MicroQRCode

This will create an instance of MicroQRCode barcode.

Syntax

microqrBarcode = Barcodes.MicroQrCode ( )

Properties

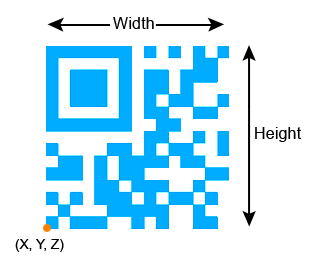

Angle float Angle at which the barcode is placed along the positive X-axis. This can have +/- values in current angle unit.
AutoExpand bool Gets or sets whether the barcode size will be automatically increased if the current size cannot accommodate all the characters.
CodeSize MicroQRCodeSize Gets or sets the size of the QR-code. Refer the Code Sizes page for a list of enumerations.
DotDuration float Gets or sets the dot duration in milliseconds (for dot hatch style)
Elevation float The z coordinate of the MicroQrCode starting position.
EncodingMode MicroQRCodeEncodingMode Gets or sets the encoding mode of the MicroQrCode Barcode.
ErrorCorrectionLevel MicroQRCodeErrorCorrectionlevel Gets or sets the error correction level of the MicroQrCode Barcode.
HatchStyle HatchStyle The hatch pattern used to fill the barcode.
Height float The height of the DataMatrix.
Invert bool If true, Inverts the DataMatrix.
LineSpace float Gets or sets the hatching line gap of the MicroQRCode.
MarkingOrder MarkingOrder Gets or sets the order in which the hatch and the outline will be marked.
MaskPattern MicroQRCodeMaskPattern Gets or sets the mask pattern of the QR-code.
QuietZone bool Specifies whether the QuietZone of the MicroQRCode is enabled or not.
Text string Gets or sets the text of the MicroQrCode Barcode.
X float Gets or sets the X coordinate of the MicroQrCode Barcode.
Y float Gets or sets the Y coordinate of the MicroQrCode Barcode.



Methods

SetHatchingDirection(HorizontalHatchDirection hatchDirection, HorizontalHatchLineScanDirection hatchLineScanDirection) Sets the hatching Direction
SetHatchingDirection(VerticalHatchDirection hatchDirection , VerticalHatchLineScanDirection hatchLineScanDirection) Sets the hatching Direction



Return Values

Returns an instance of MicroQRCode type Barcode.



Copy
Example
------ This program will scan a MicroQrCode applying the Dot hatch pattern

--Set the units as Millimeters
SetUnits(Units.Millimeters)
-- Laser Parameter settings
Laser.JumpSpeed = 2000
Laser.MarkSpeed = 1000
--Delay settings
Laser.JumpDelay = 100
Laser.MarkDelay = 100

--Assign MicroQrCode barcode to variable "var"
var = Barcodes.MicroQRCode()
--Barcode height is 14.4
var.Height = 14.4
--X coordinate is 0.5
var.X = 0.5
--y coordinate is 0.5
var.Y = 0.5
--Angle of the barcode is 30 degrees
var.Angle = 30
--Auto expand enabled
var.AutoExpand = true
--Apply Dot hatch pattern
var.HatchStyle = HatchStyle.Dot
--Sets dot duration as 100
var.DotDuration = 100
--Barcode includes "ScanMaster" text as the string
var.Text = "ScanMaster"
--Barcode size
var.CodeSize = MicroQRCodeSize.S15x15
--Specify Default as the encoding code
var.EncodingMode = MicroQRCodeEncodingMode.Default
--Specify M (Medium) as the error correction level
var.ErrorCorrectionLevel = MicroQRCodeErrorCorrectionlevel.M
--Specify the mask pattern
var.MaskPattern = MicroQRCodeMaskPattern.Mask0
--Scan MicroQRCode barcode
Image.Barcode(var)
