Barcodes Pdf417

This will create an instance of Pdf417 Barcode.

Syntax

pdfBarcode = Barcodes.Pdf417 ( )

Properties

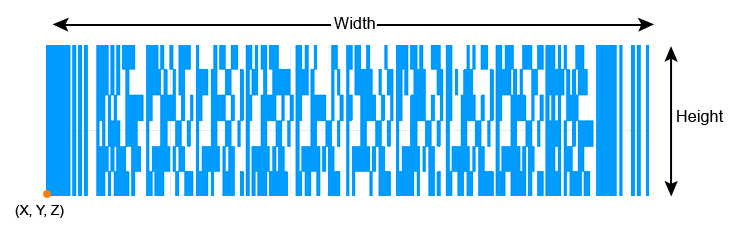

Angle float Angle at which the barcode is placed along the positive X-axis. This can have +/- values in current angle unit.
AutoExpand bool Gets or sets whether the barcode size will be automatically increased if the current size cannot accommodate all the characters..
CompactionMode Pdf417CompactionMode Gets or sets the compaction mode of the Pdf417 barcode.
DotDuration float Gets or sets the dot duration in milliseconds (for dot hatch style)
Elevation float The z coordinate of the barcodes starting position.
ErrorCorrectionLevel Pdf417ErrorCorrectionLevel Gets or sets the error correction level of the Pdf417 barcode. Refer the Error Correction Level page for a list of enumerations.
HatchStyle HatchStyle The hatch pattern used to fill the barcode.
Height float The height of the Barcode.
Invert bool If true, Inverts the barcode.
LineSpace float Gets or sets the hatching line gap of the MicroQRCode.
MarkingOrder MarkingOrder Gets or sets the order in which the hatch and the outline will be marked.
NumberOfColumns int Gets or sets the number of columns of the Pdf417 Barcode.
NumberOfRows int Gets or sets the number of rows of the Pdf417 Barcode.
PrintRatio float Ratio between the widths of wide and narrow bars
QuietZone bool Specifies whether the QuietZone of the barcode is enabled or not.
Text string Gets or sets the text of the Pdf417 Barcode.
Width float Gets or sets the width of the Pdf417 Barcode.
X float Gets or sets the X coordinate of the Pdf417 Barcode.
Y float Gets or sets the Y coordinate of the Pdf417 Barcode.



Methods

SetHatchingDirection(HorizontalHatchDirection hatchDirection, HorizontalHatchLineScanDirection hatchLineScanDirection) Sets the hatching Direction
SetHatchingDirection(VerticalHatchDirection hatchDirection , VerticalHatchLineScanDirection hatchLineScanDirection) Sets the hatching Direction



Return Values

Returns an instance of Pdf417-code type Barcode.



Copy
Example
------ This program will scan a Pdf417 barcode

--Set the units as Millimeters
SetUnits(Units.Millimeters)
-- Laser Parameter settings
Laser.JumpSpeed = 2000
Laser.MarkSpeed = 1000
--Delay settings
Laser.JumpDelay = 100
Laser.MarkDelay = 100

--Assign Pdf417 barcode to variable "var"
var = Barcodes.Pdf417()
--Barcode height is 14.4
var.Height = 14.4
--X coordinate is 0.5
var.X = 0.5
--y coordinate is 0.5
var.Y = 0.5
--Angle of the barcode is 30 degrees
var.Angle = 30
--Auto expand enabled
var.AutoExpand = true
--Apply horizontal line hatch pattern
var.HatchStyle = HatchStyle.Horizontal
--Sets the line space as 0.1 Millimeters
var.Linespace = 0.1
--Barcode includes "ScanMaster ScanScript" text as the string
var.Text = "ScanMaster ScanScript"
--Set the compaction mode as text
var.CompactionMode = Pdf417CompactionMode.TextMode
--Specify the columns of the barcode
var.NumberOfColumns = 8
--Specify the error correction level of the barcode
var.ErrorCorrectionLevel = Pdf417ErrorCorrectionLevel.Level1
--Specify the rows of the barcode
var.NumberOfRows = 6
--Specify the width of the barcode
var.Width = 3
--Scan Pdf417 barcode
Image.Barcode(var)
